Xtruck Y005 NOx Sensor Scanner – 1-Click CAN Bus Detection, Module Fault Finder & Heater Function Check for Heavy Duty Trucks

Xtruck Y005 NOx sensor detector is designed to help vehicle maintenance engineers easily and quickly determine the problem of CAN bus or module.
With Xtruck Y005 NOx sensor detector, you can find CAN circuit defect problems or whether NOx module is damaged more quickly.

Mainly Function:

1.Quickly detect whether there is a problem with the CANbus line or module
2.Quickly detect whether the nitrogen oxide module is damaged
3.Quickly help maintenance personnel determine the problem

List of tested models:

Sofware Update : Online Update & Free

Warranty : 1 year warranty, Life-Long Aftersales Services

How to use it?

1. One end of the main test line is connected to the device, and the other end is connected to the nitrogen and oxygen sensor.
2. Nitrogen and oxygen sensor heating
3. Connect the nitrogen and oxygen sensor, and click the NOx sensor test, choose 24V or 12V NOx sensor test
4. Select the corresponding model
5. When the connection is complete, click the “Go” button, and then enter the test of the nitrogen and oxygen sensor. After 300 seconds, the nitrogen and oxygen concentration and oxygen concentration will be displayed. If the nitrogen and oxygen sensor is damaged, the machine will report the corresponding fault code.

Operating Instruction :
1,Connection method between main test line and device as shown on the right

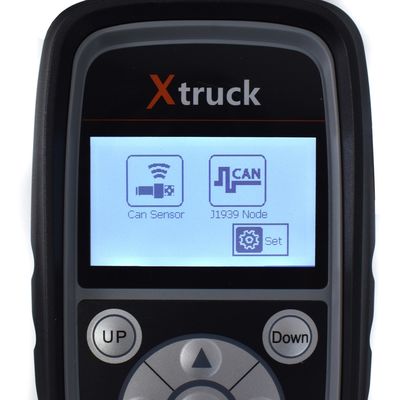

2,Press the power for 3 seconds to enter the menu, as shown on the right

1)CAN-bus Node search
This function can help find thelost node through the OBD interface which can find device on the CAN bus.

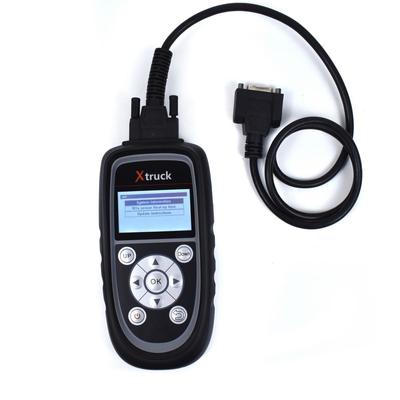

Step 1:One end of the main test lineis connected to the device, and the other endis connected to the vehicle detection port OBD.
Step 2:If the wiring harness is connected correctly, click the device CAN node to search automatically
Wait for a few seconds, and the device will automatically search for the vehicle's fault-free CAN module

2)Nitrogen and Oxygen Sensor Tester

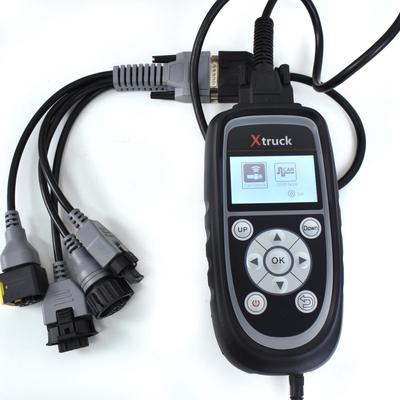

Step 1:One end of the main test line is connected to the device, and the other end is connected to the nitrogen and oxygen sensor
Step 2:Nitrogen and oxygen sensor heating
Note: The nitrogen and oxygen sensor itself needs to be heated to accurately measure the concentration of nitrogen and oxygen and oxygen concentration. It needs an external 24V power supply, or use the power of the 24V battery. If do not follow the standard steps, it may cause damage to the device and vehicles,and the company does not bear any legal liability.
Step 3: Connect the nitrogen and oxygen sensor, and click the NOx sensor test, choose 24V or 12V NOx sensor test.
Note:Please confirm that the power supply of the nitrogen and oxygen sensor is 24V/12V, the wrong selection will damage the nitrogen and oxygen sensor.
Step 4: Select the corresponding model
Method 1: Select “automatic identification test”, the machine will automatically identify the model according to the nitrogen and oxygen sensor.(This data only provides reference for maintenance personnel, not as the sole criterion for maintenance.)
Method 2: Select “Manualidentification test”, and manually select the corresponding test program according to the different types of nitrogen and oxygen sensors
If the CAN line is not properly connected, or there is a problem with the nitrogen andoxygen sensor, the CAN signal can not be found.
Step 5:
When the connection is complete, click the Go button, and then enter the test of the nitrogen andoxygen sensor. After 300 seconds, the nitrogen and oxygen concentration and oxygen concentration will be displayed. If the nitrogen and oxygen sensor is damaged, the machine will report the corresponding fault code.

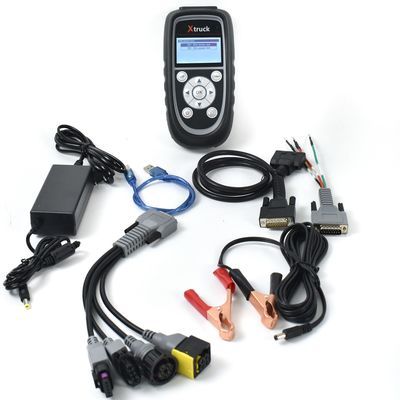

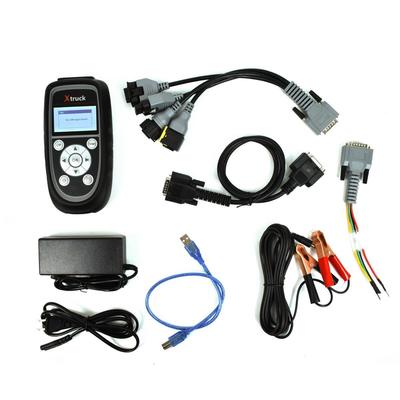

Package Includes :

1pc x Xtruck Y005 Main unit
1pc x Power adapter

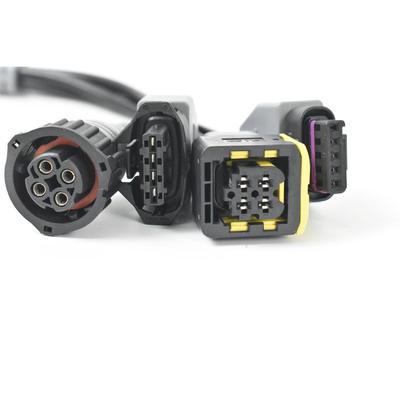

1pc x Four in one Nitrogen and Oxygen Test line
1pc x DB15 Main Test line
1pc x Device update line
1pc x Cigarette lighter line (male&female)
